Portable Carbon Fiber 24V Lithium Battery 4 Wheel Electric Wheelchair
Featuring an ultra-lightweight foldable carbon fiber frame, this wheelchair combines aircraft-grade strength with effortless portability. The advanced smart controller delivers intuitive operation, while dual 250W brushless motors provide powerful
Fast delivery
Quality warranty
OEM&ODM
- Overview
- Key Features
- Specifications
- Applications
- Competitive Advantage
- FAQ
- Recommended Products
Overview

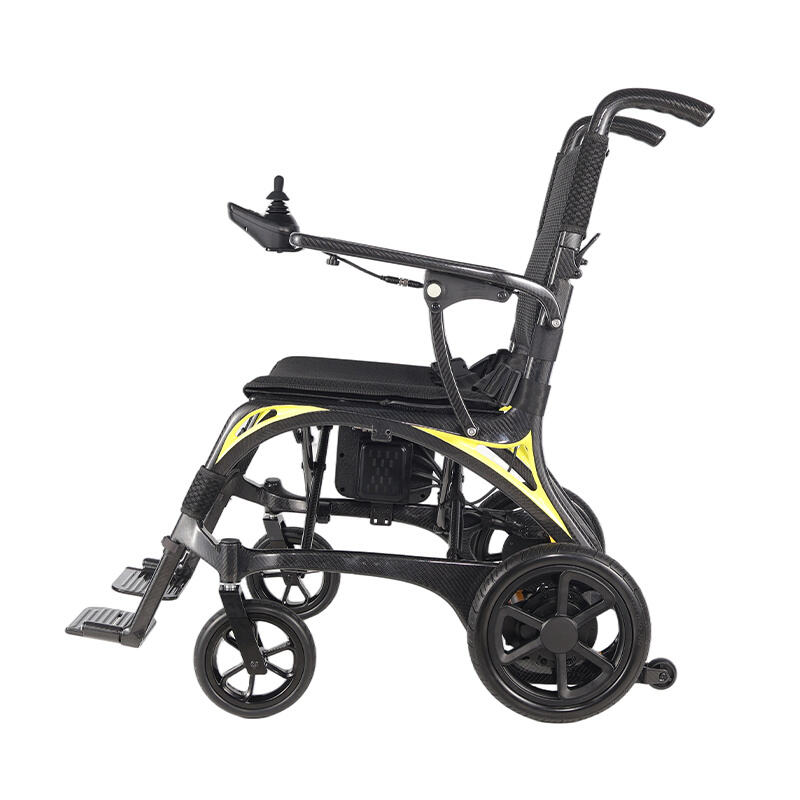

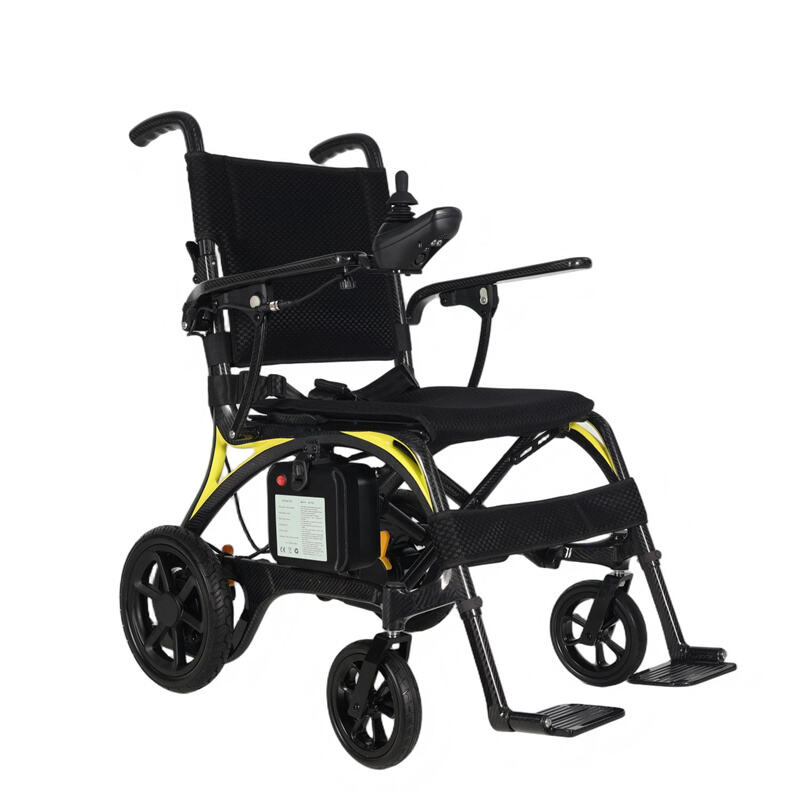

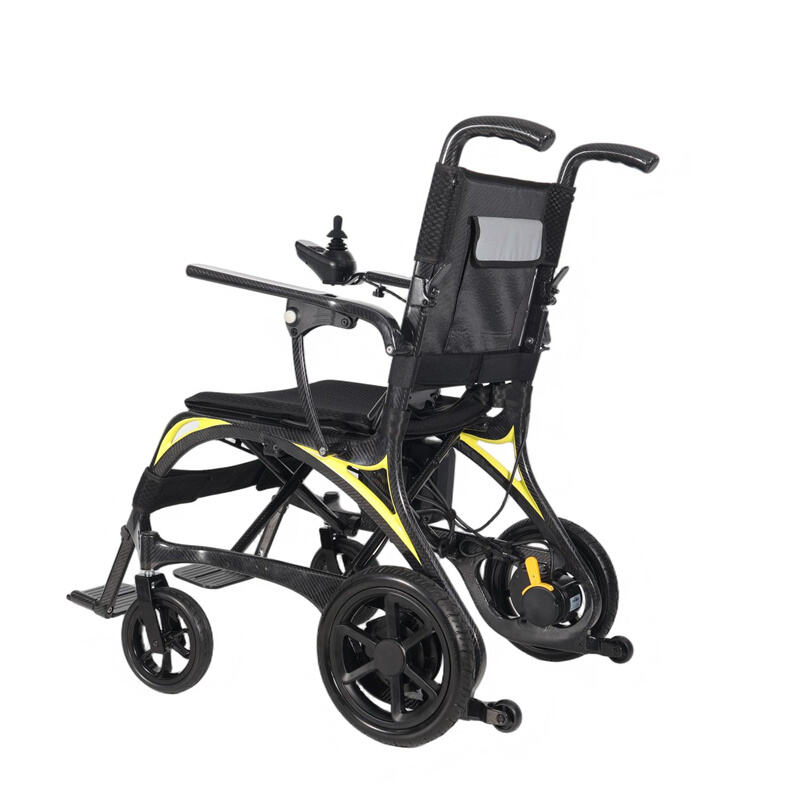

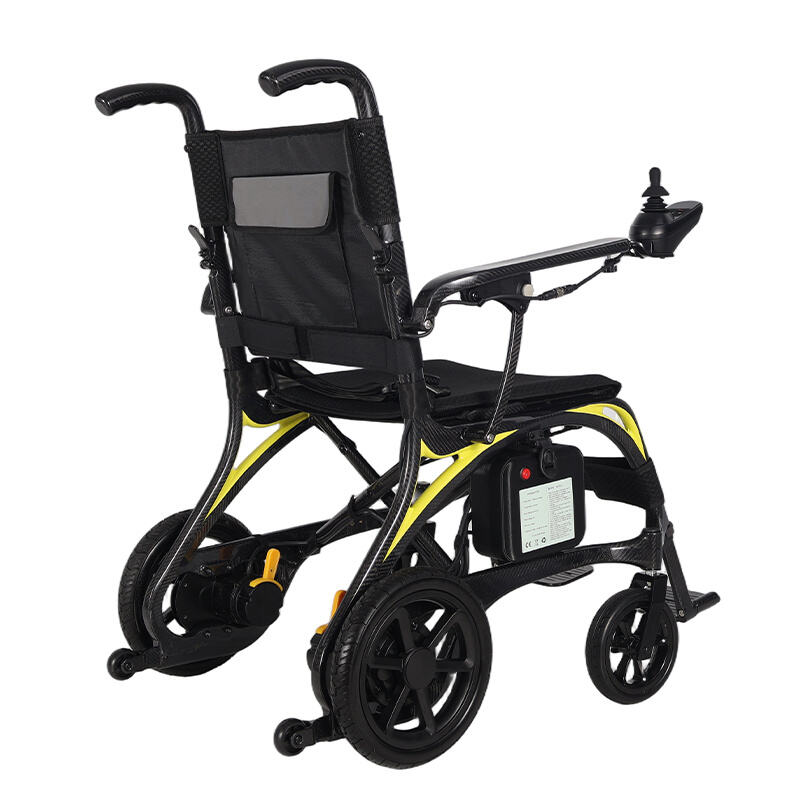

Featuring an ultra-lightweight foldable carbon fiber frame, this wheelchair combines aircraft-grade strength with effortless portability. The advanced smart controller delivers intuitive operation, while dual 250W brushless motors provide powerfu.
Key Features
Customize your range with 24V lithium battery options (10Ah standard, upgradable to 12/15/20/24Ah) for extended travel up to 15-35km. Built to support 158kg with military-grade ABS electromagnetic brakes and a precise 60cm turning radius, this wheelchair excels in urban environments, airports, and indoor spaces.
MOQ: 5 units (Bulk discounts available)
Specifications
| Model Number: YH-E8014 | Turning Radius: 6OCM |
| Frame:Carbon fiber | Climbina Abilitv:≤9° |
| Motor:250W*2 brushless | Driving Distance: 10-15km |
| Battery:24V10ah Lithium Battery,option 12,15,20,24amp battery | Front Wheel: 8inch(solid) |
| Rear wheel: 11.5inch(solid) | |
| Controller: Import 360° LCD Joystick | Seat size:W41*L40*T3cm |
| Max Loading: 158KG | Backrest size:W40*H46*T2cm |
| Brake: ABS Electromagnetic Brake System | G.W.: 19KG |
| Forward Speed:0-6km/h | N.W.(With battery):17KG |
| Reverse Speed:0-3km/h |
Applications
• Urban Commuting – Navigate city streets, shopping malls, and public transport with ease
• Travel & Transport – Foldable design fits in car trunks and airplane cabins
• Rehabilitation & Elderly Care – Smooth acceleration and braking for post-surgery recovery
• Active Lifestyles – Trail-ready with optional all-terrain tires (add-on available)
• Disability Assistance – ADA-compliant for daily independence
Competitive Advantage
Lightweight Yet Ultra-Strong
• Carbon fiber frame – 17kg total weight with battery
• Load capacity (158kg) without compromising portability
Smart Power System
• Dual 250W brushless motors – 30% more torque than standard 200W models
• Upgradable battery (10-24Ah) – Choose your ideal range (15-35km)
• Regenerative braking – Recovers energy when slowing down
Premium Safety Features
• ABS + electromagnetic brakes – Stops within 0.6m at full speed (6km/h)
• Anti-tip wheels – Prevents accidents on slopes and uneven terrain
FAQ
Q:Are you a trading company or manufacturer?
A:We are an experienced manufacturer with a factory covering an area of 52,000 square meters.
Q:Can I have my own customized product?
A: Yes. OEM&ODM are available, including design, logo, package etc.
Q:Whatis shipping term for mass production?
A:we only provide FOB and EXW. But we can recommend Chinese forwarders to you.
Q:Can I get sample?
A: Yes. We can supply sample for quality test. You only need to pay for the sample and courier. We will arrange it in 3 working days.
Q:What is the payment terms?
A: T/T, Western Union, Paypal ect.
Q:What's the delivery time?
A:Within 15 days for ready stock order. About 25-30 days for OEM&ODM order. The exact time depends on actual situation.
