Carbon Fiber Frame Foldable Smart Electric Wheelchair
Experience freedom and independence with our high-performance Aluminum Alloy Electric Wheelchair, engineered for durability, comfort, and effortless mobility. Designed for both indoor and outdoor use, this wheelchair combines advanced technology with a lightweight yet sturdy aluminum alloy frame, ensuring reliability in every journey.
Fast delivery
Quality warranty
OEM&ODM
- Overview
- Key Features
- Specifications
- Applications
- Competitive Advantage
- FAQ
- Recommended Products
Overview
Experience freedom and independence with our high-performance Aluminum Alloy Electric Wheelchair, engineered for durability, comfort, and effortless mobility. Designed for both indoor and outdoor use, this wheelchair combines advanced technology with a lightweight yet sturdy aluminum alloy frame, ensuring reliability in every journey.
Key Features

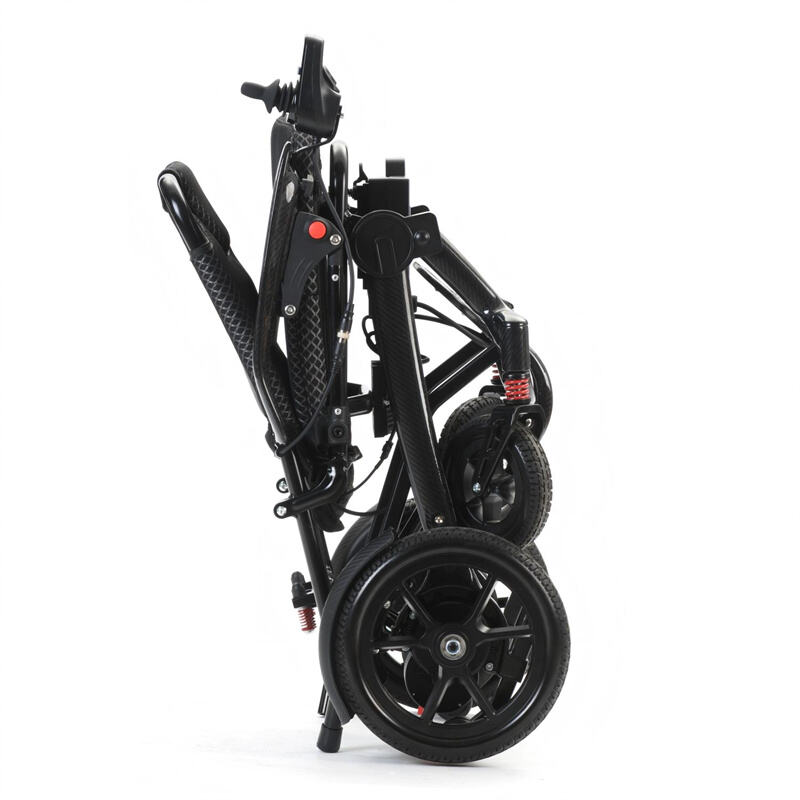

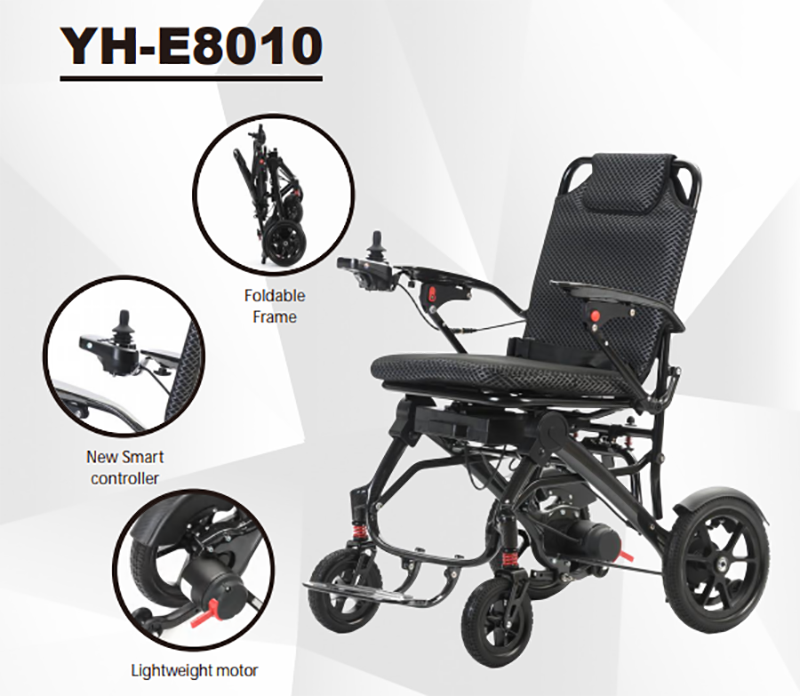

Carbon Fibre Electric Wheelchair, featuring a foldable carbon fiber frame that combines exceptional strength with featherlight portability (only 18kg). The imported 360°LCD joystick controller offers precise, intuitive control with real-time battery and speed display. Powered by dual 150/200W brushless motors, this wheelchair delivers smooth, quiet operation with enough torque for 10° inclines.
Equipped with a 24V 12Ah lithium battery, it provides a reliable 10-15km range on a single charge, while supporting up to 136kg safely. The ABS electromagnetic brake system ensures instant stopping power, and the optimized 84cm turning radius makes navigation through standard doorways effortless.
MOQ: 5 units (Custom configurations available)
Specifications
| ZHEJIANG NYSIN MEDICAL CO.,LTD/ZHEJIANG QIANXI VEHICLE CO.,LTD | |||||
|
Address: No.305 Jiulong North Road,Yongkang City,Zhejiang Province,China321300 Contact person:Ms.Crystal Ye Mob/Whats App/Wechat:+86-18969388871 Tel: 86-579-87153932 |
Remark: 1.MOQ: 10pcs 2.Qty<10pcs, the total value will be+USD100 per order for local charge. 3.Term of payment: 30% T/T for deposit,the balance should be paid before shipping. 4.Delivery time :20 days for one full container. 5.The quotation is valid for 15 days. |
||||
| To: | Expiry date: | ||||
| Item No | Picture | Description | Price | Specifications | |
| XFGN18-208CA(Qianxi)NXN20-211(Nysin) |  |
Frame:Carbon Fiber +6061 AluminiumAlloy+Widder Tyre | FOB PRICE | Weight Capacity | 100kgs/220lbs |
| Motors:24V/200W (Unite Brushless) | Motor 200W*2(Unite) | Charge time | 3-5h | ||
| Battery:24V12Ah(Lithium) | US$455.00 | Max.forward speed | Up to 5.5km/h | ||
| Controller Joystick (Yanteon Brushless) | Spring seat/trail light+10USD | Max.backward speed | Up to 2km/h | ||
| Charger:AC100-240V, 24V2A/3A | Mini Turning radius | 840mm | |||
| Climbing capability | 9°(100kgs) | ||||
| Frame: carbon fiber + aluminum alloy + wide tires | Obstacle clearance height | 25mm(100kgs) | |||
| Motor :2*200W Unet brushless motors | Factory price excluding tax | Ditch crossing width | 100mm(100kgs) | ||
| Battery :24V12AH lithium battery | Motor 200W*2(Yunet) | Driving Range | Up to 20km | ||
| Controller: Yanteng brushless | ¥3,200.00 | Ground ckarance | 30mm at Anti-tip wheel,9cm at Motor | ||
| Charger :24V2A/3A | Spring seats/taillights +70 yuan | Tyres | |||
| Front Tyres | 7inch 165mmx29mm PU solid | ||||
| Rear Tyres | 1linch 277mmx35mm PU solid | ||||
| Packing Details | Anti-tip Tyres | 52*12mm Nylon | |||
| G.W.with carton | 23kgs | Rim Material | Magnesium alloy | ||
| N.W.with out batery | 16kgs+0.55kgs(charger) | Seat | |||
| Battery Weight | 2.2kgs(12Ah) | Seat Material | Oxford cloth/Cotton, Inside:Sponge | ||
| Packing size | 645*360*800mm | Seat Width | 430mm | ||
| 20'FCL | 17Ipes | Seat Deepth | 400mm | ||
| 40 HQ FCL | 345pes | Seat Thickness | 40mm | ||
| FEATURE: | Backrest Height | 465mm | |||
| 1.Untra light,Folding easily for taking by one person | Seat to Ground Height | 560mm | |||
| 2.Electromagnetic brake | Seat to Foot platform Height | 460mm | |||
| 3.Controller with Led light | Size | ||||
| 4.Suspension optional | Overall Lengt | 950mm(With Anti-tip wheel) | |||
| Waranty: | Overall Widh | 600mm | |||
| Frame:5 year limit | Overall Height | 960mm | |||
| Controller/battery/Motor:12 month | Fald Size(L"W*H) | 600*340*765mm | |||
Applications
• Urban Mobility - Perfect for navigating city streets, shopping malls, and public spaces
• Rehabilitation Aid - Gentle acceleration ideal for post-surgery recovery
• Daily Independence - Supports active lifestyles for seniors and disabled users
• Institutional Use - Ideal for hospitals, nursing homes, and rehabilitation centers
Competitive Advantage
Smart Control System
• Imported 360°LCD joystick with speed adjustment, battery indicator, and error alerts
High-Efficiency Powertrain
• Dual brushless motors (150/200W selectable)
• Upgradable battery system
Advanced Safety Features
• Dual ABS + electromagnetic brakes
• Anti-tip wheels and automatic slope detection
FAQ
Q:Are you a trading company or manufacturer?
A:We are an experienced manufacturer with a factory covering an area of 52,000 square meters.
Q:Can I have my own customized product?
A: Yes. OEM&ODM are available, including design, logo, package etc.
Q:Whatis shipping term for mass production?
A:we only provide FOB and EXW. But we can recommend Chinese forwarders to you.
Q:Can I get sample?
A: Yes. We can supply sample for quality test. You only need to pay for the sample and courier. We will arrange it in 3 working days.
Q:What is the payment terms?
A: T/T, Western Union, Paypal ect.
Q:What's the delivery time?
A:Within 15 days for ready stock order. About 25-30 days for OEM&ODM order. The exact time depends on actual situation.
