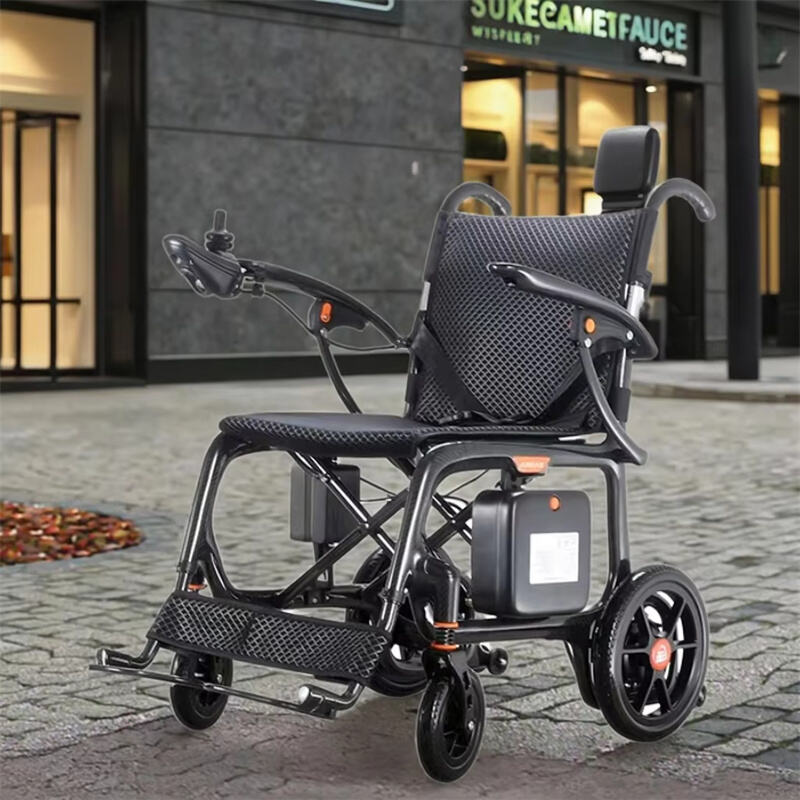

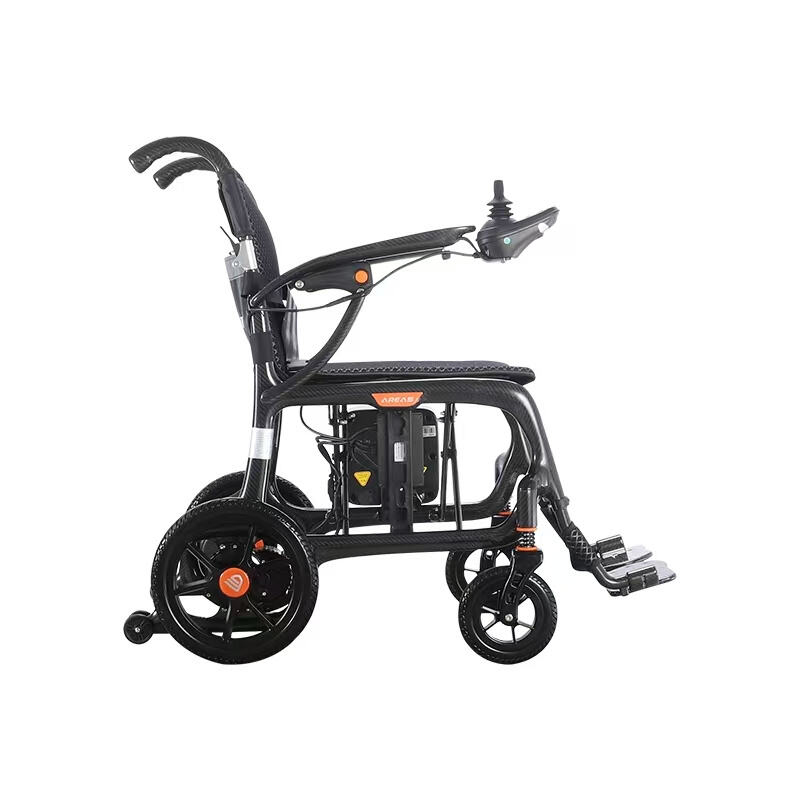

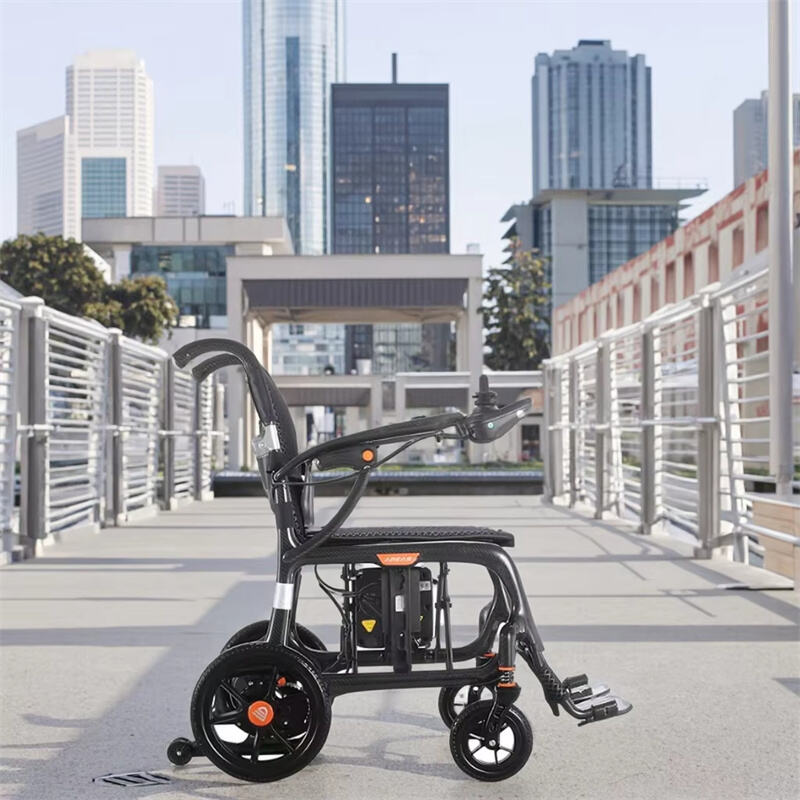

Lightweight Carbon Fiber Motorized Electric Wheelchair

Overview

Our Carbon Fiber Electric Wheelchair, designed for comfort, durability, and high performance.

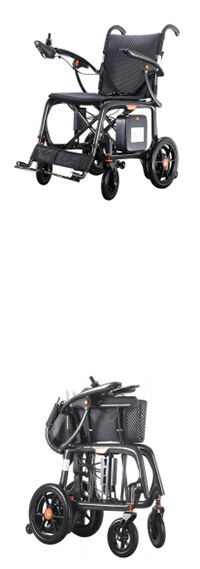

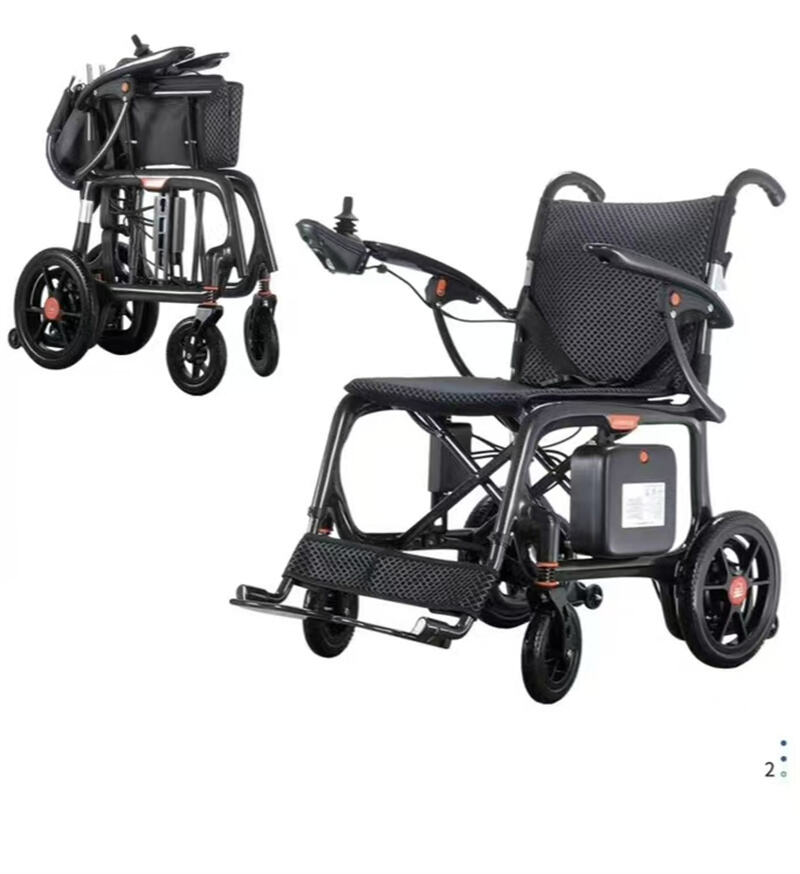

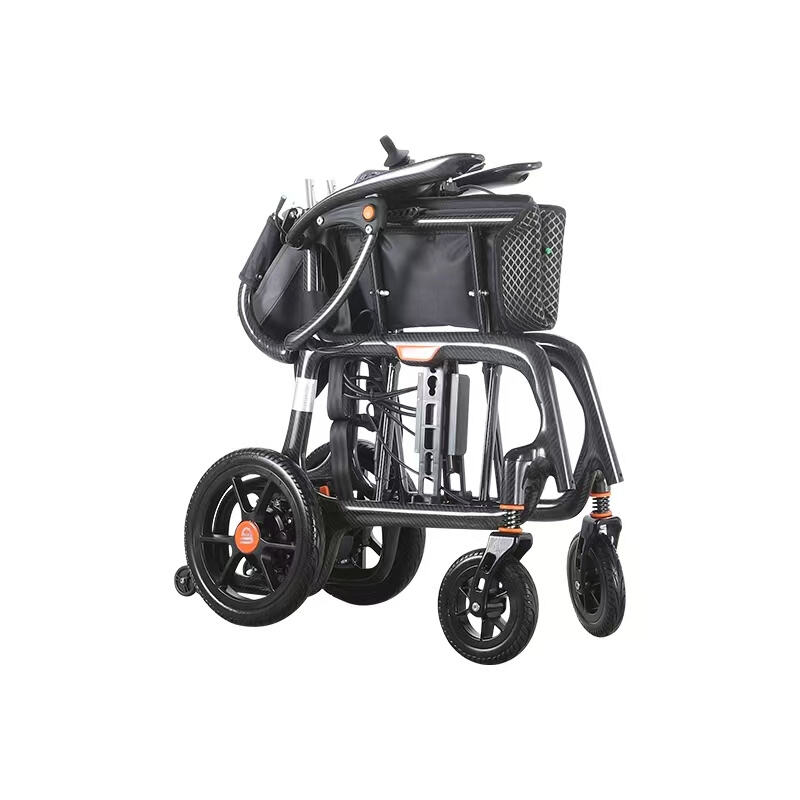

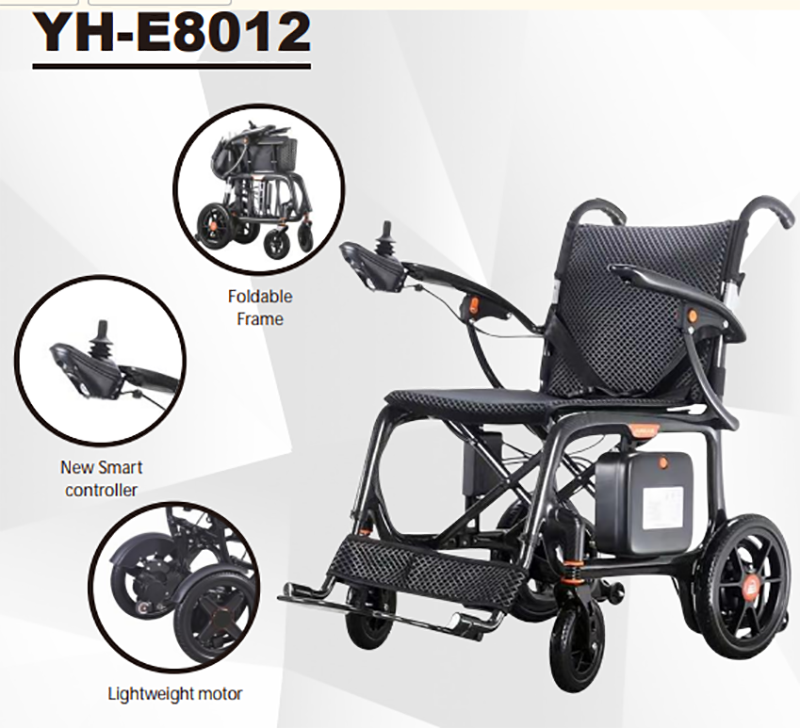

This advanced wheelchair features a foldable carbon fiber frame, making it lightweight yet incredibly strong. Equipped with a new smart controller (360° LCD Joystick) for smooth and precise handling, it ensures effortless maneuverability even in tight spaces with a 60cm turning radius.

Key Features

Powered by dual brushless motors (150W/200W/250W options), this wheelchair delivers reliable speed and climbing ability.

The 24V 12Ah lithium battery provides a 10-20km driving range on a single charge, while the ABS electromagnetic brake system guarantees safety and quick stopping. With a max load capacity of 136kg, it supports users of various sizes.

Customization is easy—choose your preferred motor power and frame color.

We accept small orders (MOQ: 5 units) and provide samples for quality assurance.

Upgrade your mobility with a high-tech, reliable, and stylish carbon fiber electric wheelchair—contact us today for samples or orders!

Specifications

ZHEJIANG NYSIN MEDICAL CO.,LTD/ZHEJIANG QIANXI VEHICLE CO.,LTD
Address: No. 305 Jiulong North Road, Yongkang City, Zhejiang Province, China321300 Contact person:Ms.Crystal Ye Mob/ Whats App/Wechat:+86-18969388871 Tel: 86-579-87153932 E-mail:[email protected]/[email protected]			Remark: 1.MOQ: 10pcs 2.Qty<10pcs,the total value will be+USD100 per order for local charge. 3.Term of payment: 30% T/T for deposit,the balance should be paid before shipping. 4.Delivery time:20 days for one full container. 5.The quotation is valid for 15 days.
To:			Expiry date:
Item No	Picture	Description	Price	Specifications
XFGN15-209(Qianxi) NXN20-209(Nysin)		Frame:Carbon Fiber	FOB PRICE	Weight Capacity	136kgs/300lbs
		Motors:24 V/200W/250W*2(Unite/ShiyouBrushless)	Motor 200W*2(Unite)	Charge time	3-5h
		Battery:24V12Ah(Lithium)	US$730.00	Max,forward speed	Up to 4.5km/h
		Controller:Joystick (Yanteon/Shiyou Brushless)	Motor 250W*2(Shiyou)	Max.backward speed	Up to 1.8km/h
		Charger:24V 2/3A	US$815.00	Mini Turning radius	870mm
			Widder tyre+7USD	Climbing capability	6°(100kgs)
		Frame: Carbon fiber		Obstacle clearance height	25mm(100kgs)
		Motor :2*200W Unet /250W Shiyou brushless motors	Factory price excluding tax	Ditch crossing width	100mm(100kgs)
		Battery :24V12AH lithium battery	Motor 200W*2	Driving Range	Up to 20km
		Controller: Yanteng/Shiyou brushless	¥5,100.00	Ground clearance	30mm at Anti-tip wheel,90mm at Motor
		Charger :24V2/3A	Motor 250W*2	Tyres
			¥5,700.00	Front Tyres	7inch 165mmx30mm PU solid
			Wide tires +50￥	Rear Tyres	1 1inch 277mmx35mm PU solid
		Packing Details		Anti-tip Tyres	54*15mm Nylon
		G.W.with carton	19.5kgs	Rim Material	Magnesium alloy
		N.W.with out battery	13.3kgs+0.45kgs(charger)	Seat
		Battery Weight	2.2kgs(12Ah)	Seat Material	Flame retardant cloth+Sponge
		Packing size	790*320*790mm	Scat Width	400mm
		20'FCL	153pcs	Seat Deepth	400mm
		40'HQ FCL	318pes	Sent Thickness	15mm
		FEATURE:		Backrest Height	370mm
		1.Untra light,Folding casily for taking by one person		Scat to Ground Height	480mm
		2.Electromagnetic brake		Scat to Foot platform Height	380-410mm
		3.Controller with Led light		Size
				Overall Length	930mm(With Anti-tip wheel)
		Waranty:		Overall Width	560mm
		Frame:5 year limit		Overall Height	870mm
		Controller/battery/Motor:12 month		Fold Size(L*W'H)	730*250*715mm

Applications

Ideal for both indoor and outdoor use, this wheelchair is perfect for:

• Daily commuting (shopping, parks, urban travel)

• Rehabilitation & elderly care (hospitals, nursing homes)

• Travel & leisure (foldable design for easy transport)

• People with limited mobility seeking independence

Competitive Advantage

• Ultra-Lightweight & Durable – Carbon fiber frame ensures strength without added weight.

• Smart Control – Imported 360° LCD joystick for intuitive and responsive steering.

• Powerful & Efficient – Brushless motors + long-range lithium battery for smooth performance.

• Safety First – ABS electromagnetic brakes ensure reliable stopping power.

• Compact & Portable – Foldable design for easy storage and transport.

• Customizable – Multiple motor options and colors available.

FAQ

Q:Are you a trading company or manufacturer?

A:We are an experienced manufacturer with a factory covering an area of 52,000 square meters.

Q:Can I have my own customized product?

A: Yes. OEM&ODM are available, including design, logo, package etc.

Q:Whatis shipping term for mass production?

A:we only provide FOB and EXW. But we can recommend Chinese forwarders to you.

Q:Can I get sample?

A: Yes. We can supply sample for quality test. You only need to pay for the sample and courier. We will arrange it in 3 working days.

Q:What is the payment terms?

A: T/T, Western Union, Paypal ect.

Q:What's the delivery time?

A:Within 15 days for ready stock order. About 25-30 days for OEM&ODM order. The exact time depends on actual situation.
