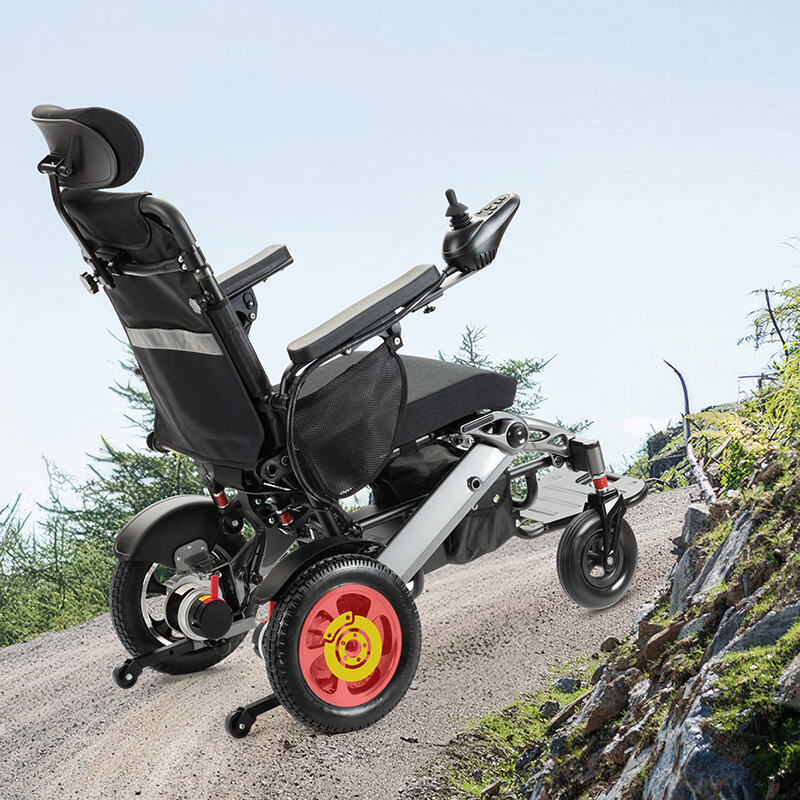

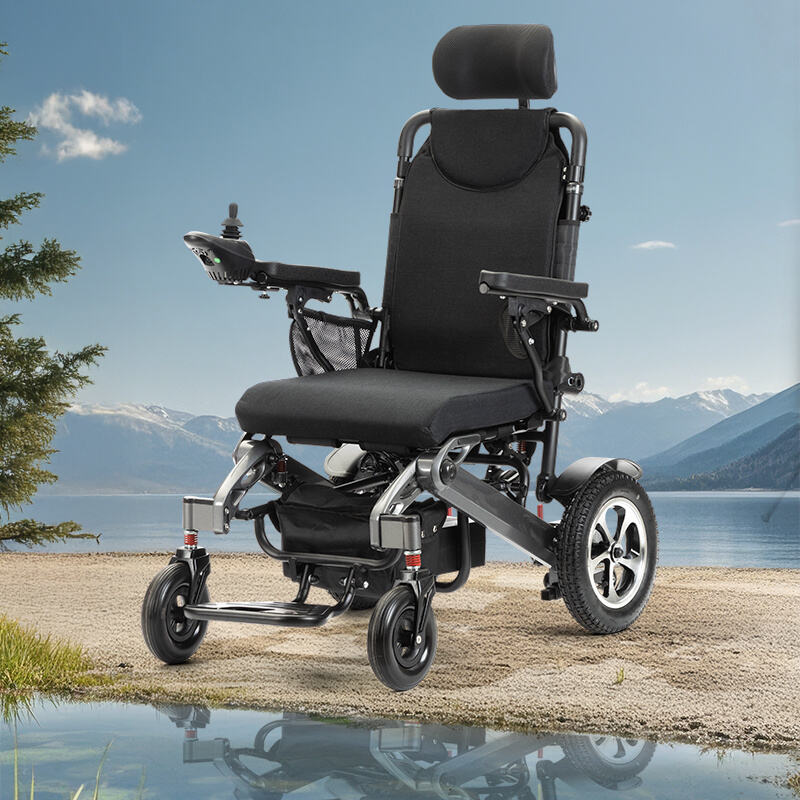

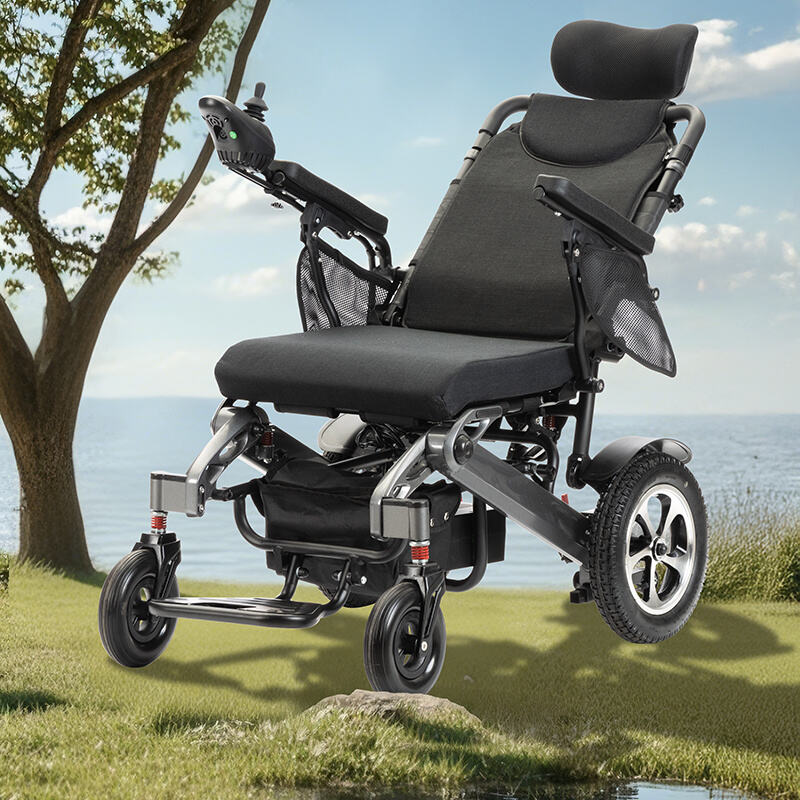

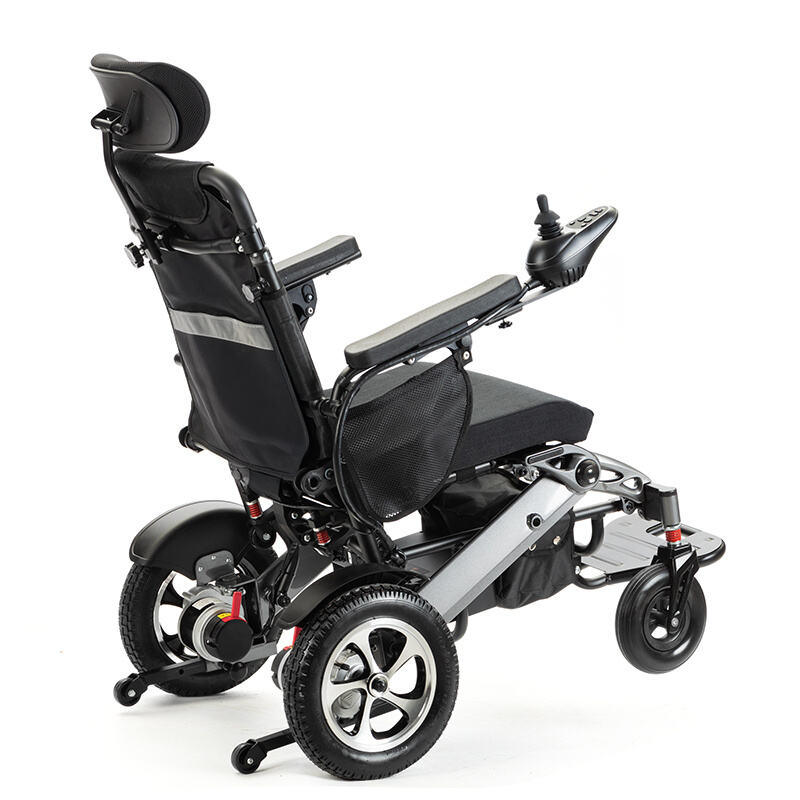

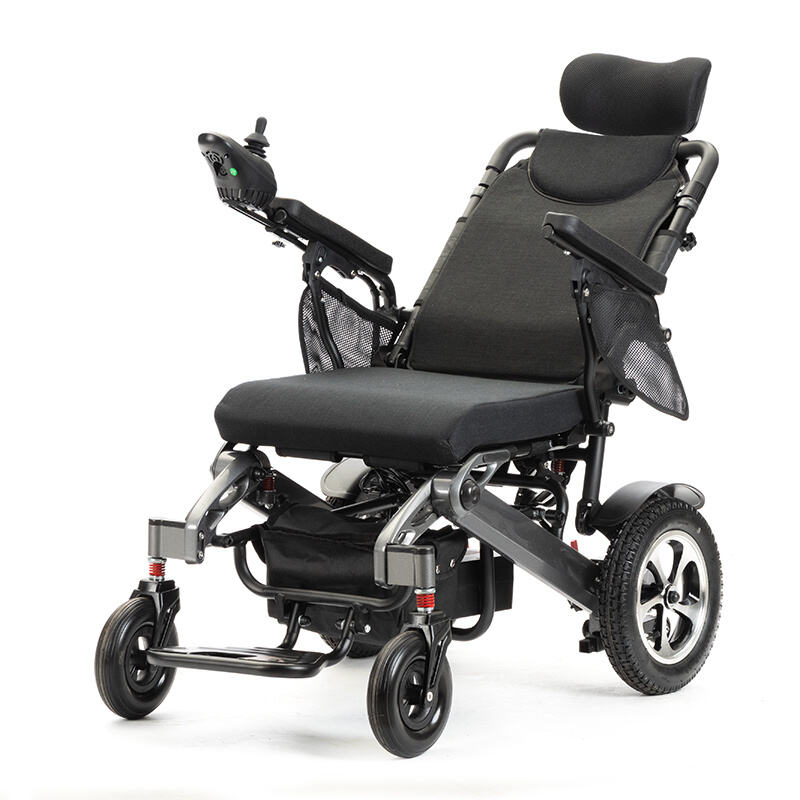

Disabled Foldable Lightweight Electric Wheelchair
Adjustable Reclining Backrest - Customizable angles from 90° to 160° for optimal comfort
Foldable Frame Design - Quick one-hand folding mechanism for easy storage and transport
Anti-Tilting Wheel System - Enhanced stability on uneven surfaces for maximum safety
Fast delivery
Quality warranty
OEM&ODM
- Overview
- Key Features
- Specifications
- Applications
- Competitive Advantage
- FAQ
- Recommended Products
Overview
Key Features
• Adjustable Reclining Backrest - Customizable angles from 90° to 160° for optimal comfort

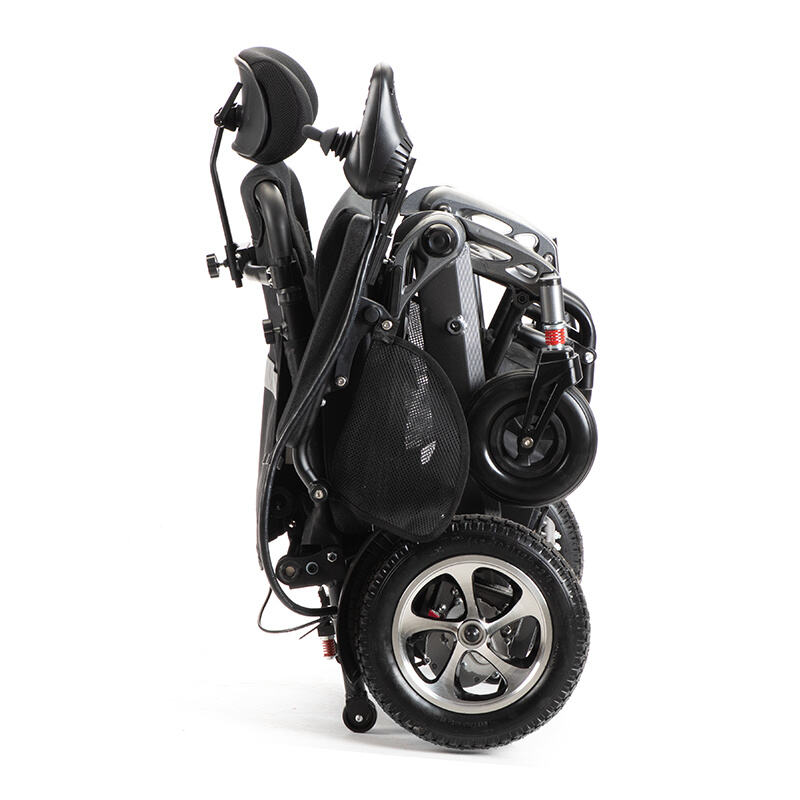

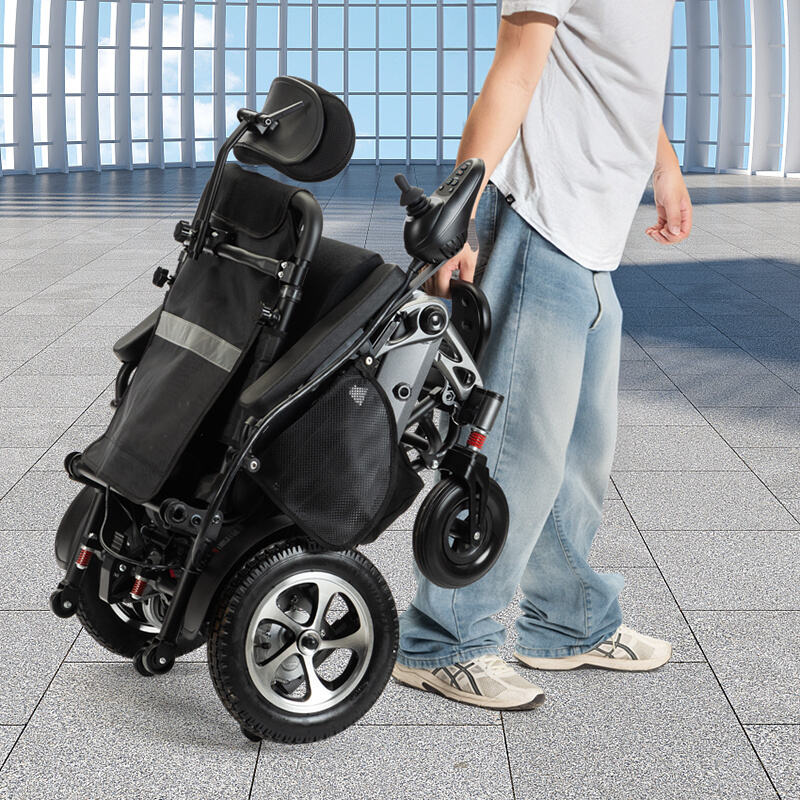

• Foldable Frame Design - Quick one-hand folding mechanism for easy storage and transport
• Anti-Tilting Wheel System - Enhanced stability on uneven surfaces for maximum safety
• Dual 250W Brushed Motors - Powerful yet quiet operation with smooth acceleration
• High-Performance Battery - 24V 12Ah/20Ah lithium options (10-25km range per charge)
• Heavy-Duty Construction - Reinforced frame supports up to 150kg (330lbs)
• Electromagnetic Braking - Immediate stopping power for complete safety
• Compact Maneuverability - 60cm turning radius for navigating tight spaces
• Aluminum Frame - Exceptionally strong yet lightweight
• Premium Control System - Imported 360° joystick with adjustable sensitivity
• Minimum Order Quantity - 5 units and sample availability
Specifications
| Model Number: | YH-E7014R | Turning Radius: | 60CM |
| Frame: | Aluminum alloy | Climbing Ability: | ≤12° |
| Motor: | 250W*2 brushed | Driving Distance | 10-25km |
| Battery: | 24V12Ah/20Ah Lithium battery | Front Wheel: | 8inch(solid) |
| Controller: | Import 360°Joystick | Rear wheel: | 12inch(pneumatic) |
| Max Loading: | 150KG | Seat size: | W45*L45*T7cm |
| Brake: | Electromagnetic brake | Backrest size: | W44*H58*T2cm |
| Forward Speed: | 0-6km/h | G.W.: | 36.5KG |
| Reverse Speed: | 0-3km/h | N.W.(With battery): | 32.5KG |
Applications
• Daily mobility for seniors and individuals with limited movement
• Rehabilitation and physical therapy
• Indoor and outdoor urban commuting
• Travel and outdoor activities
• Home and institutional care settings
Competitive Advantage
• Unmatched Comfort - Adjustable reclining reduces fatigue during extended use

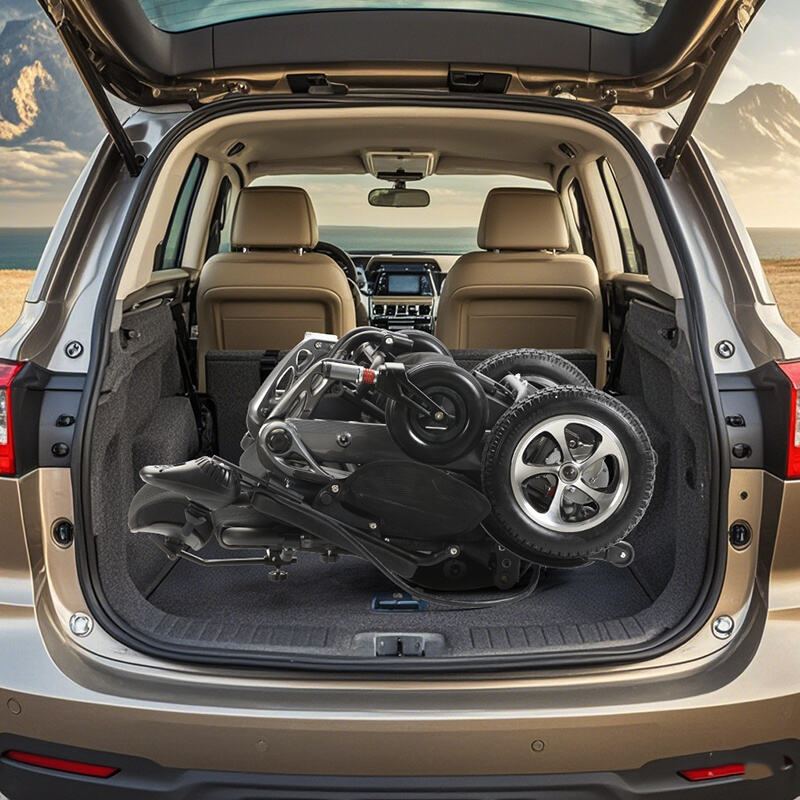

• Space-Saving Innovation - Folds to just 35cm width for convenient storage
• Advanced Safety - Anti-tilt technology prevents accidents on slopes
• Reliable Performance - Dual motor system handles various terrains with ease
• Extended Range - High-capacity lithium battery for all-day use
• Custom Styling - Multiple color options available
• CE Certifications - Complies with international safety standards
FAQ
Q:Are you a trading company or manufacturer?
A:We are an experienced manufacturer with a factory covering an area of 52,000 square meters.
Q:Can I have my own customized product?
A: Yes. OEM&ODM are available, including design, logo, package etc.
Q:Whatis shipping term for mass production?
A:we only provide FOB and EXW. But we can recommend Chinese forwarders to you.
Q:Can I get sample?
A: Yes. We can supply sample for quality test. You only need to pay for the sample and courier. We will arrange it in 3 working days.
Q:What is the payment terms?
A: T/T, Western Union, Paypal ect.
Q:What's the delivery time?
A:Within 15 days for ready stock order. About 25-30 days for OEM&ODM order. The exact time depends on actual situation.
